Sidewalks & FlatworkFoundations

Richmond Bridge Driveway

Richmond, CA

Project Type
Bridge Driveway
Project Year
2024
Structure
Elevated concrete deck
Detail
Waterproofed, steel-railed
The finished elevated concrete bridge driveway with steel guardrails leading to the modern home’s entry — Richmond Bridge Driveway, Richmond, CA
Overview

An elevated concrete “bridge” driveway New Edge Concrete built for a modern hillside home in Richmond in 2024, working with general contractor Burton Builders. To carry a driveway across the drop to the home’s entry, we excavated and poured the foundation footings, formed a suspended structural concrete deck, and waterproofed it with a Bituthene membrane over a full reinforcing-steel mat before the pour. Hand-finished smooth and framed by steel guardrails, the finished bridge reads as a clean concrete span from the street right up to the front door.

General ContractorBurton Builders

Scope of work

  • Foundation footings & excavation
  • Suspended structural concrete deck
  • Bituthene waterproofing membrane
  • Full reinforcing-steel mat
  • Smooth-finished driveway
  • Steel guardrails

The finished result

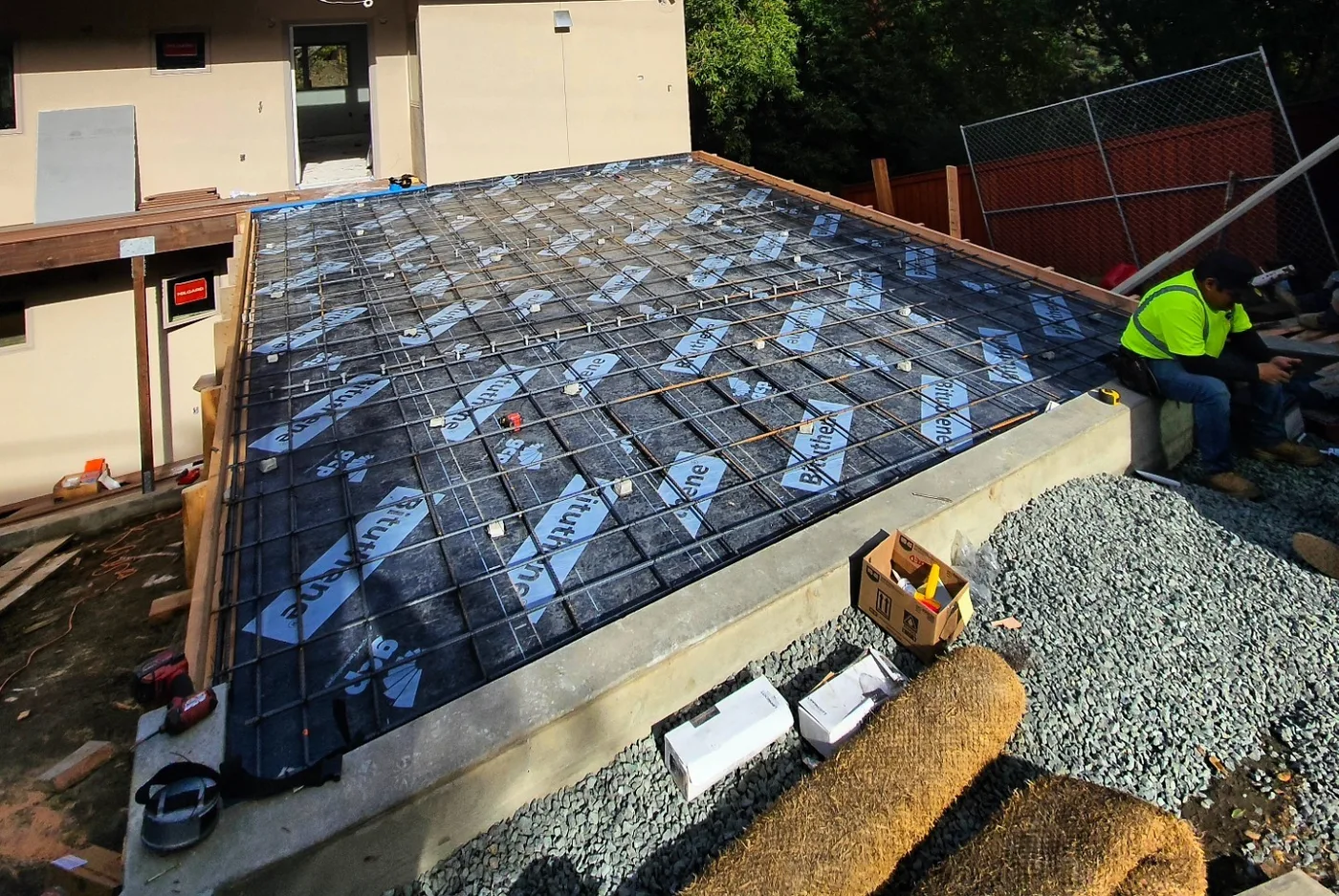

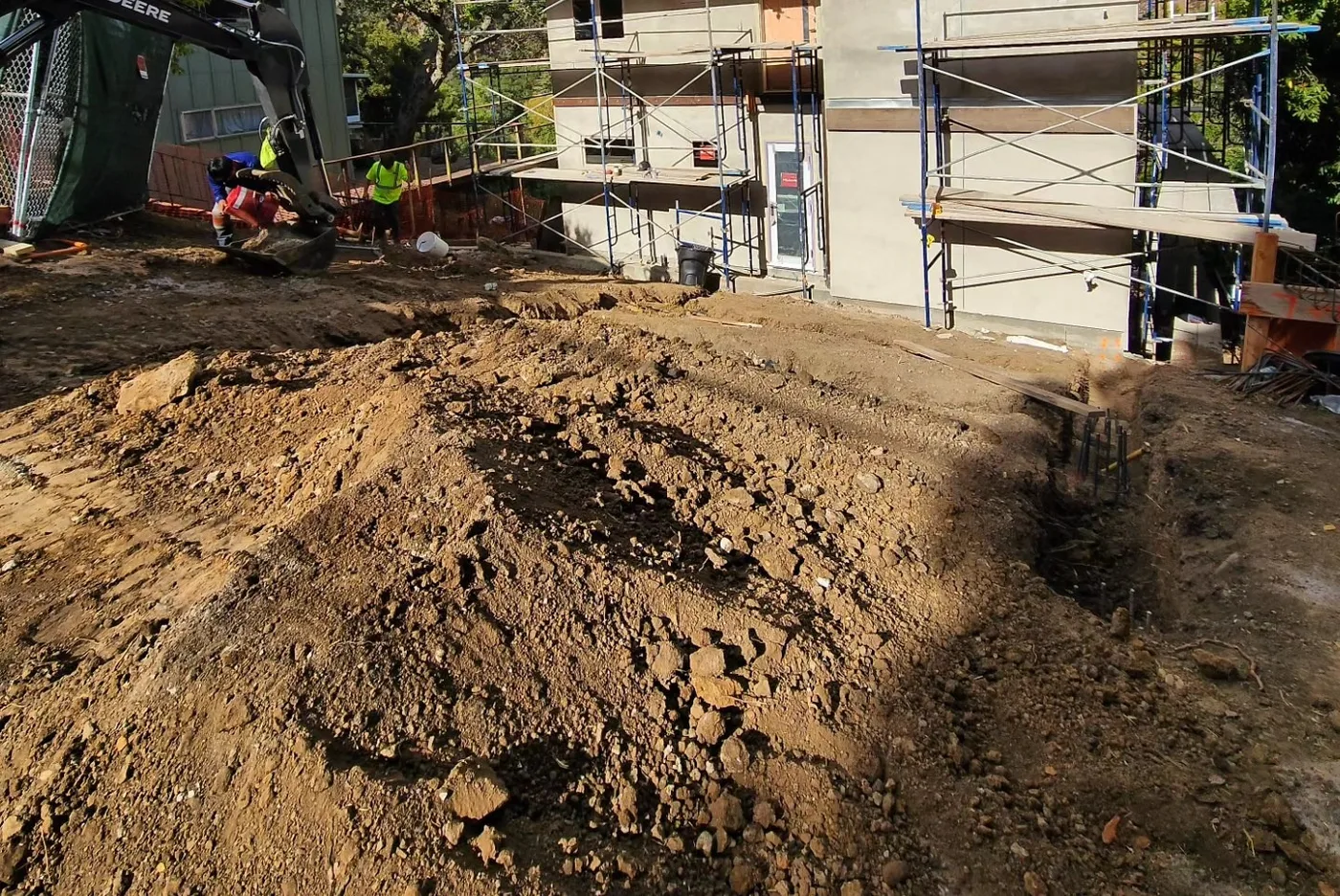

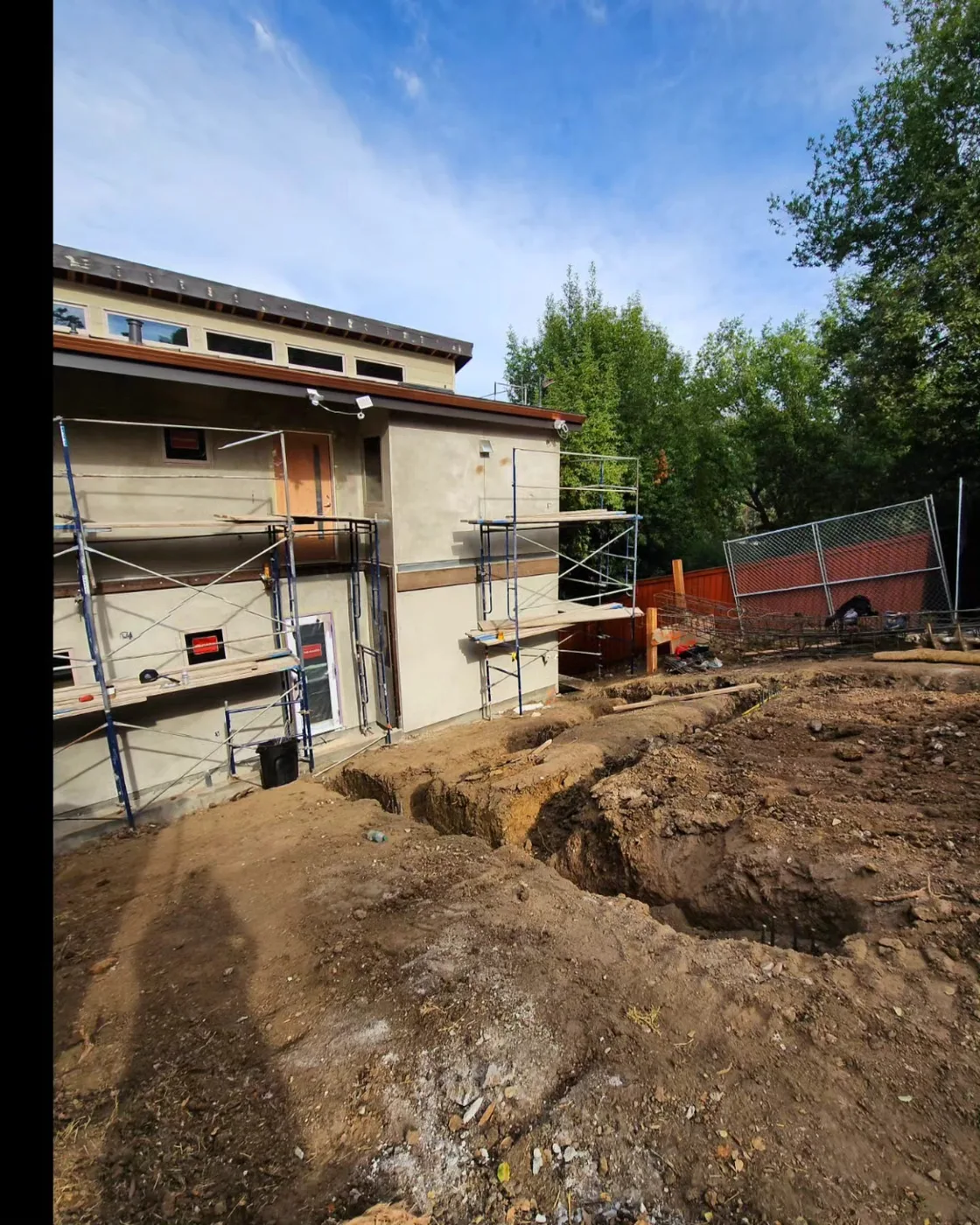

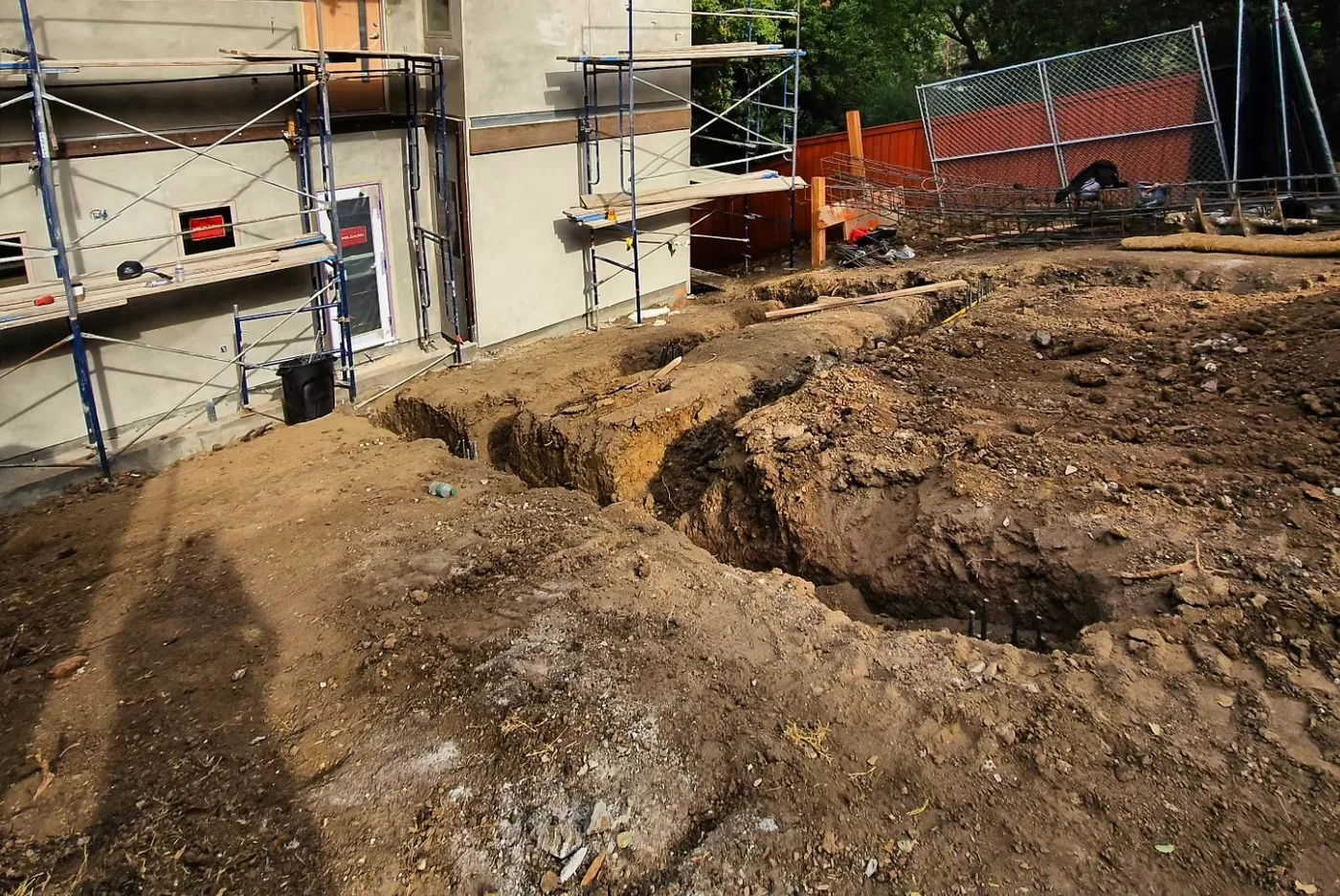

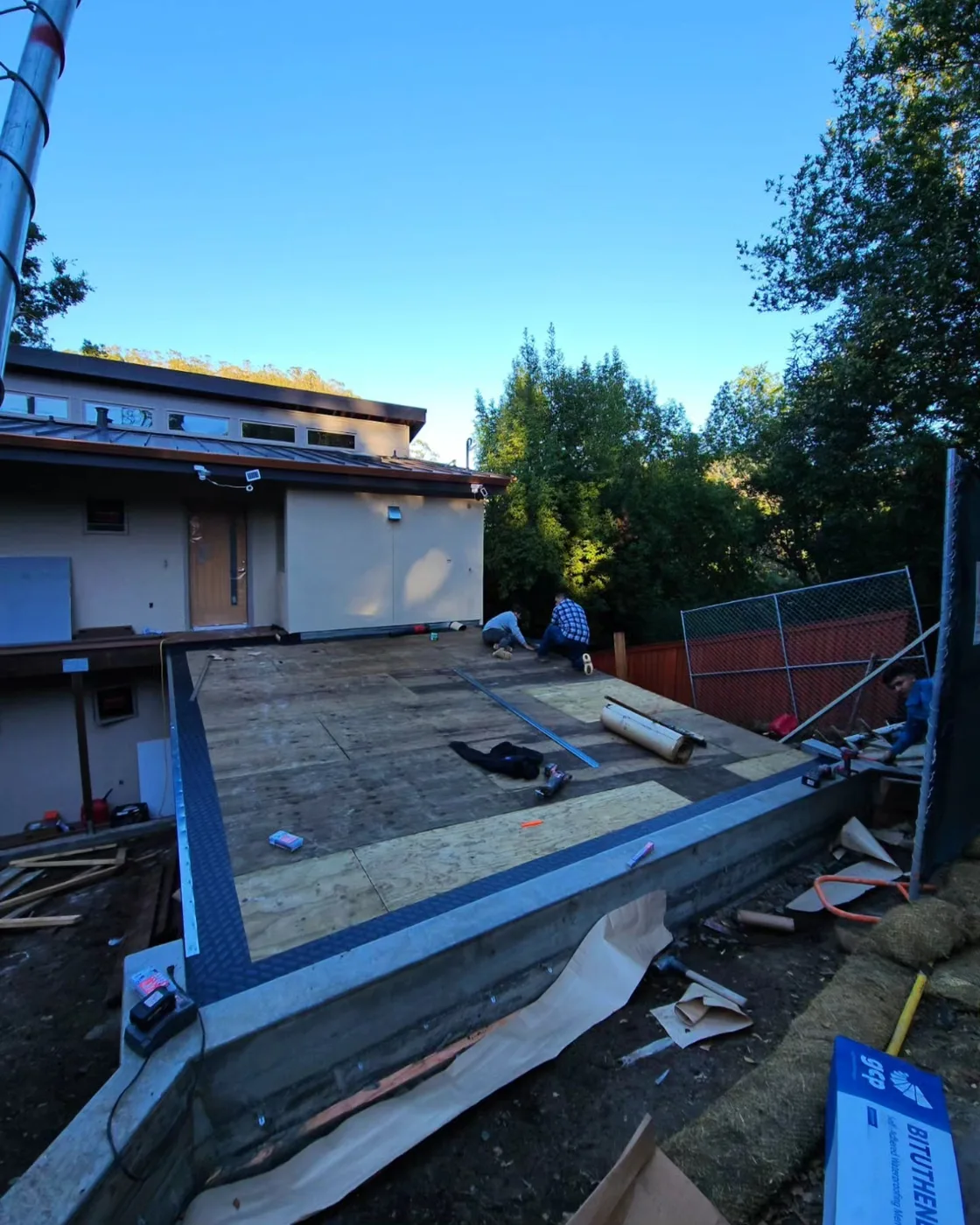

During the build

Excavation, forming, reinforcement, and the pour — the work behind the finish.
